Anaerobic chambers with micropressure monitoring system
Maworde YY Anaerobic Workstations – Superior Anaerobic Control
Choose Maworde YY series for unmatched anaerobic performance: ca. 30-minute anaerobiosis, real-time O2 sensor (instead of indicator strips), and PLC touchscreen vs outdated buttons/knobs.
Superior materials & stability: Annealed acrylic shell with excellent insulation Integrated T/H control eliminates incubator dependency.
Catalyst efficiency: Palladium catalyst regenerates in 40 min every 6 months—no more frequent regeneration needed. Active air circulation ensures uniform <1 ppm O₂.
Advanced features: Seamless Entry System, tool-free removable panels, H2 monitoring/alarm, full customization for robotics integration. HEPA H14 with real-time circulation.
Need a customized anaerobic workstation? Ask us for adaptations to your needs!
See more Maworde features
Integrated Micro Pressure & Oxygen Sensing System
- Real-time oxygen monitoring ensures precise gas regulation
- Accurate micro-pressure detection with a precision of 0.1 KPA
- Continuous monitoring and automatic adjustment of the intake system based on pressure and oxygen levels
Precise temperature and humidity control
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
(Optional high/low temperature control) - Humidity Control: Room humidity to 80%
Advanced gas crculation sesign
- Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
- Consistent airflow contributes to accurate and reliable experimental outcomes
- HEPA 14 filter available for superior particle removal and a pristine environment
Seamless Entry System (SES)
- Efficient vacuum pump grants direct workstation access in 10-12 seconds
- Operable with lab gloves, ensuring seamless and convenient handling
- Glove port caps easily "parked" in special holders, optimizing workspace utilization
Innovative acrylic construction
- Panels molded from a single piece of acrylic to reduce condensation and microbial growth
- Improved acrylic Integrity with Annealing Process for enhanced durability
Dual Pressure Relief System
- Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation
- Optional H2 sensor for real-time monitoring of hydrogen leve
Models and size positioning of anaerobic chambers

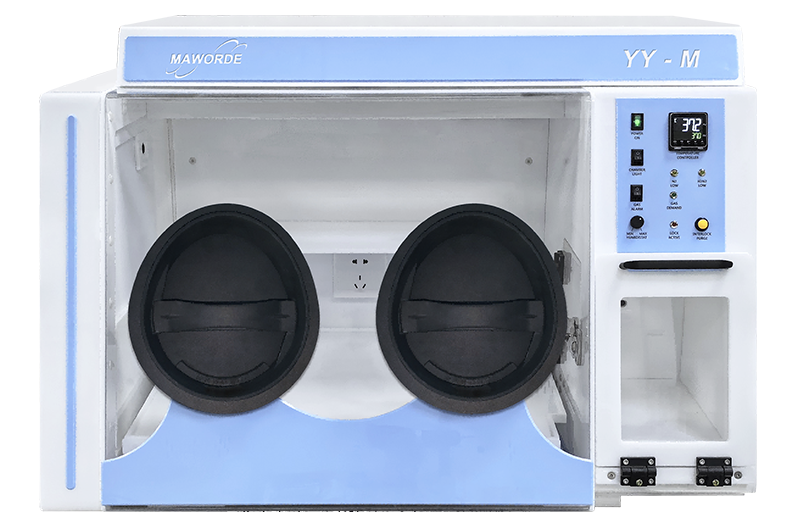

YY-M Anaerobic chamber with micropressure monitoring system 97 l, interlock 14 l. Petri dishes capacity: max. 350, intelock 44.
YY-L Anaerobic chamber with micropressure monitoring system 155 l, interlock 14 l. Petri dishes capacity: max. 520, intelock 44.
YY-XL Anaerobic chamber with micropressure monitoring system 238 l, interlock 14 l. Petri dishes capacity: max. 720, intelock 44.

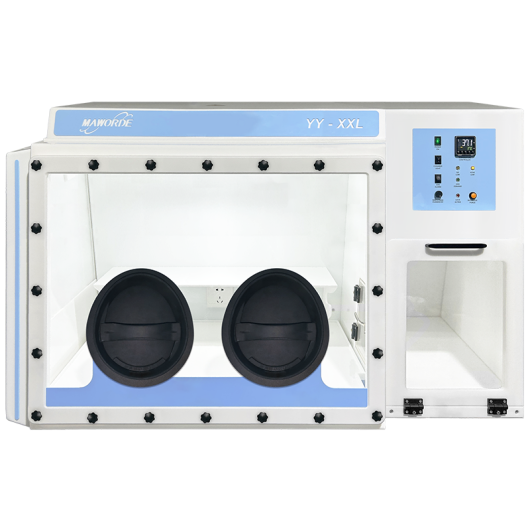

YY-XXL Anaerobic chamber with micropressure monitoring system 238 l, interlock 36 l. Petri dishes capacity: max. 720 intelock 171.

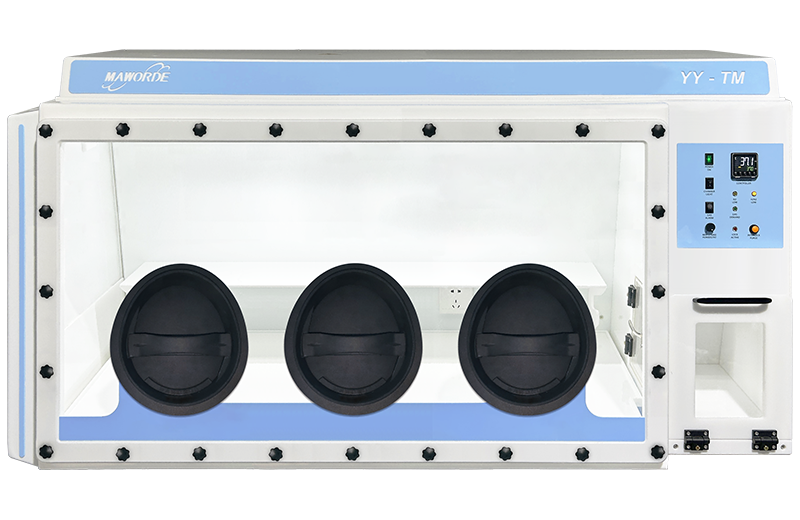

YY-TM Anaerobic chamber with micropressure monitoring system 345 l, interlock 14 l. Petri dishes capacity: max. 1000, intelock 44.
Other sizes are also available. Ask about customization options!
- YY033 O2 monitoring with alarm
- YY034 Data Logging System
- YY001 Extra Portable O2 Meter
- YY002 <5ppm oxygen option
- YY030 PPM level interlock
- YY003 PPM O2 meter, monitoring range: 0 - 500 ppm, with ±5 ppm accuracy, storage conditions < 0.1% O2 level, O2 sensor is not under warranty
- YY029 Additional Gas Port for Anaerobic Jar (Button)
- YY025 (Two for YY-TM) HEPA Filtration System
- YY009 Cable port
- YY022 Additional socket
- YY006 Single Plate Entry System (SPES)
- YY008 Vac Line Connection Port
- YY021 Sidewall pipette holder
- YY024 Gas sample port
- YY035 Cooling system with dehumidification, room temperature-5℃ to room temperature
- GC-HT High temperature chamber, room temperature +5℃ to 55℃
- YY101 Delete Detachable Front Panel
- YY104 Delete temperature Control
- YY105 Delete screen
| Nosaukums | |
|---|---|
| YY-M Anaerobic chamber with micropressure monitoring system 97 l, interlock 14 l | |
| YY-L Anaerobic chamber with micropressure monitoring system 155 l, interlock 14 l | |
| YY-XL Anaerobic chamber with micropressure monitoring system 238 l, interlock 14 l | |
| YY-XXL Anaerobic chamber with micropressure monitoring system 238 l, interlock 36 l | |
| YY-TM Anaerobic chamber with micropressure monitoring system 345 l, interlock 14 l |
